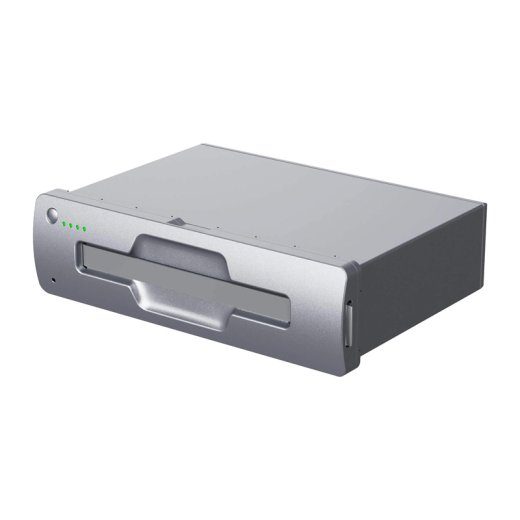

UNITREE B2 Battery

Unitree B2 Battery This high-voltage battery is designed to power the Unitree B2 robot in the most demanding operating scenarios. The voltage of 58 V allows for greater power to be delivered to the drive systems, which directly translates into better movement dynamics, higher speed, and more effective obstacle avoidance. In addition, the rated energy of 2250 Wh and capacity of 45 Ah enable long-term operation of the device under heavy load. Advanced BMS system The battery is equipped with an advanced BMS management system that monitors the most important cell operating parameters. This ensures safe battery use and maintains stable power parameters when operating the robot in demanding conditions. Operation in a wide temperature range The Unitree B2 battery is designed to operate in a variety of environments. Its discharge temperature range is from -20°C to 50°C, which allows the robot to be used in both cold and hot conditions. In turn, the charging temperature range of 0°C to 40°C allows for safe energy replenishment under typical operating conditions. ManufacturerUnitreeNameUnitree B2 batteryCapacity45 AhRated energy2250 WhVoltage58 VManagement systemBMSDischarge temperature rangeFrom –20°C to 50°CCharging temperature rangeFrom 0°C to 40°CCompatibilityUnitree B2
